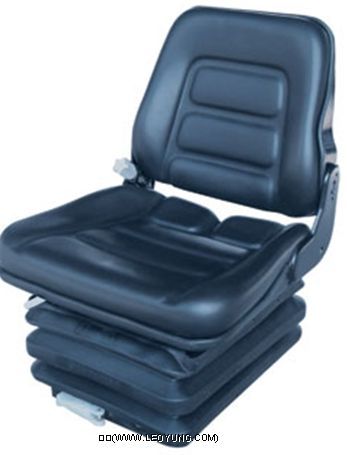

XFZY-1E



1. Height (center) 650mm Headrest/Seat Arms/Safety Belt
2.Cushion Width 480mm
3. Backrest Width 420mm
4. Surface Height(center) 290mm
5. SIP Point To the Front 275mm To the Bottom 325mm
6. Skin Material PVC synthetic leather
7. Installing Hole Size 260*252(282)*6-M8
8. Height adjustment range 60mm, 3 gears
9. Backrest Adjustment Angle 15°
10. Shock Damping Mode Mechanical Damping
11. Damping Device Stroke 80mm
12. Weight Adjustable Range 50kg-130kg
13. Front to Back Adjustable Distance 150mm
